Re: How much TB is too much?
Posted: Sat Jun 05, 2010 6:12 pmThe Watercooled Vanagon runners look very much like the Mustang 5.0 upper intake manifold runners where they join the lower intake manifold.
VW Megasquirt Forum
VW only forum for megasquirt discussion
http://vwmegasquirt.freeforum.ca/
How much TB is too much?
Page 2 of 2
Posted: Sat Jun 05, 2010 6:12 pmRe: How much TB is too much?
Posted: Sat Jun 05, 2010 7:32 pmgot a pic of the stang stuff
Re: How much TB is too much?

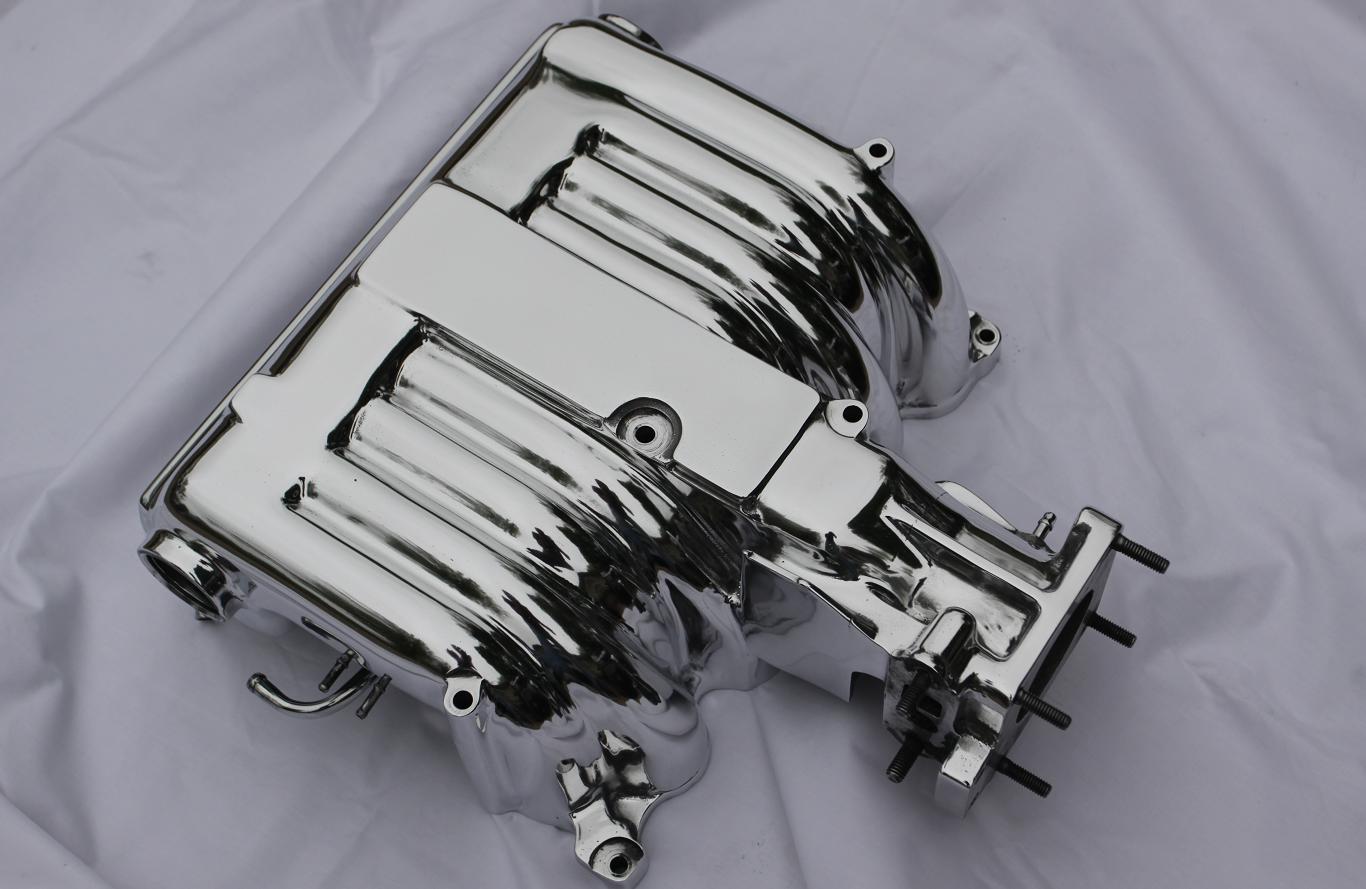

Posted: Mon Jun 07, 2010 10:26 amPics of 1995 Mustang 5.0 upper intake manifold.
Re: How much TB is too much?
Posted: Mon Jun 07, 2010 5:01 pmwhat does the other end look like? its not a straight 8 im sure lol
little search i found this...
Looks like a bunch of aluminium welding.
little search i found this...
Looks like a bunch of aluminium welding.
Re: How much TB is too much?
Posted: Mon Jun 07, 2010 11:23 pm"and the music goes round and round, and it comes out here...."
That is the upper intake manifold. The lower intake manifold has the row of 8 that gets split to the 8 ports with injectors at the ends of the runners at the head.
It is pretty amazing actually. The air goes through the airbox to the TB and then the long runner over to the plenum. The plenum then allows the air to turn back around and go the other way to the top of the lower intake manifold. Then, the air goes off in 8 different directions through the lower intake manifold to the ports in the heads.
If you measure the distance from the back of the intake valves to the airbox it is a long way. I am not sure how long, but it is plenty long.
That is the upper intake manifold. The lower intake manifold has the row of 8 that gets split to the 8 ports with injectors at the ends of the runners at the head.
It is pretty amazing actually. The air goes through the airbox to the TB and then the long runner over to the plenum. The plenum then allows the air to turn back around and go the other way to the top of the lower intake manifold. Then, the air goes off in 8 different directions through the lower intake manifold to the ports in the heads.
If you measure the distance from the back of the intake valves to the airbox it is a long way. I am not sure how long, but it is plenty long.
